2011-2013 navigation radios

Models RHB, RER and RHR

RHB Radio Upgrading to RHB RER radio RHR radio Upgrading to RHR


Garmin navigation radio RHB

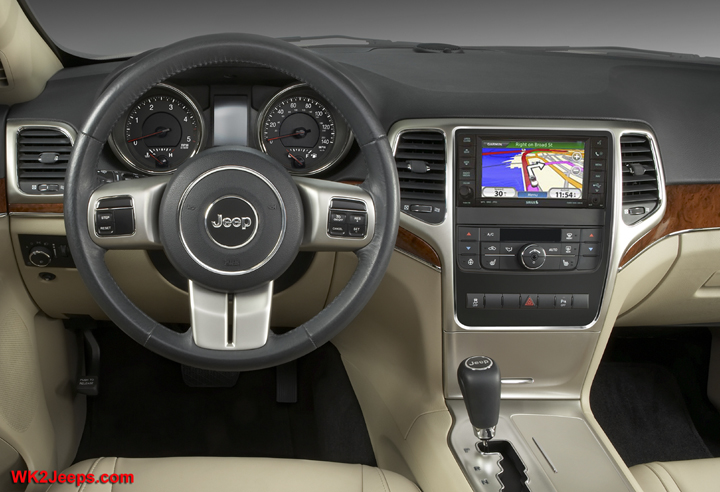

Garmin RHB Navigation Radio



2012 Radios Notice: Starting in 2012 model year radios will come equipped with an anti-theft feature. Once a radio is installed in a vehicle, it learns the vehicle's VIN and cannot be used in another vehicle unless an anti-theft code is applied.


1. Media Center 430N (model RHB)

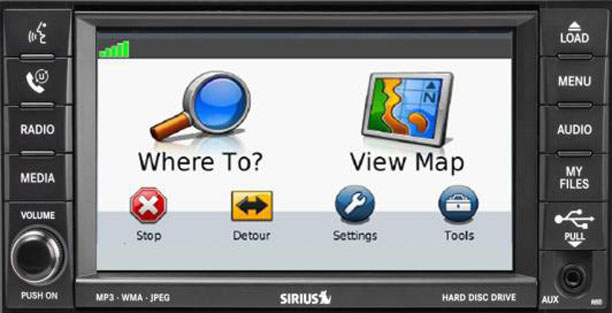

Garmin navigation radio RHB



  • Mid-level navigation radio
  • AM/FM/CD/DVD/MP3/HDD/NAV
  • Garmin navigation interface
  • Lane guidance feature guides you to the correct lane for an approaching turn or exit,
    making unfamiliar intersections and exits easy to navigate
  • 6.5" touch screen
  • SIRIUS Satellite Radio®
  • Satellite Radio replay buffer (last 30 minutes)
  • SIRIUS Travel Link* (provides drivers with up-to-the-minute information ranging from gas prices to movie listings)
  • 40GB hard drive (20GB usable)
  • Audio jack for playing music through speakers
  • Album artwork
  • USB copy/read

  • Uconnect Voice Command (available)
    -   Hands-free Phone
    -   Remote USB port for iPod® connectivity (center console)
    -   Bluetooth streaming audio
    -   Hands-free SMS text messaging
    -   Allows control of music on iPod devices or memory sticks via voice command,
         including song selection by ARTIST, SONG, and GENRE.
    -   Includes support for songs loaded onto USB memory sticks

* A software update was released April 2011 to add the Sirius Travel Link feature. See this PDF file for information: Travel Link Update CD



Major differences between the RHB and RER/RHR navigation radios

Chrysler Group created the RHB radio (430N) as a lower priced alternative to the top of the line RER/RHR (730N) navigation radios. The 430N is priced several hundred dollars less than the 730N - but it does not have all of the features.

Major differences:

Graphics: The RHB uses navigation software by Garmin, while the RER/RHR uses navigation software by Navteq. The graphics and some features are different.

Dead Reckoning: When a vehicle doesn't have a clear view of the sky - such as in a tunnel or garage, or when surrounded by tall buildings - all navigation systems lose reception of GPS satellite signals. The 730N has a "dead reckoning" feature which enables it to estimate the current location until the sky is once again visible. (At start-up, it also remembers the vehicles last location, and immediately displays this estimated location until it can read signals for a precise fix). This is also known as "Enhanced GPS". The RHB does not have dead reckoning: it will display a question mark until it can receive GPS satellite signals and identify the current location.

Voice Command: With the 730N, drivers can program a desired destination using Uconnect Voice Command, while the vehicle is in motion. While the voice command is packaged with the 430N on most vehicles (and an option on the rest), it cannot be used to operate the navigation system - the vehicle must be parked so that drivers can enter a destination using the on-screen keyboard.

Traffic: The 730N includes traffic information provided by SIRIUS; the first year's subscription is free. The 430N does not offer this feature. However, the 430N is able to receive the SIRIUS Travel Link service, with helpful information about weather, nearby filling stations and prices, nearby movie theaters and show times, and even sports scores. The RER radio cannot do this, but its replacement model, the RHR, includes the feature.

Split-screen mode: With the 730N you can view music and navigation screens at the same time.



The RHB navigation radio will be available from the factory on the following vehicles:

2011-2012 Jeep Grand Cherokee
2011-2012 Dodge Caliber
2011-2012 Dodge Challenger
2011 Dodge Dakota
2011-2012 Dodge Durango
2011-2012 Jeep Liberty
2011-2012 Dodge minivans
2011 Dodge Nitro
2011-2012 Dodge Ram (all models)
2011-2012 Jeep Wrangler



Grand Cherokee RHB part numbers (radio unit only)
  • High speed Bus system
  • Not compatible with 2010 or prior Grand Cherokee models
2011
5064839AE (up to 6/21/10)
5064839AF (after 6/21/10
5064839AG
5064839AH

2012
5091188AB

With integrated satellite radio MSRP: $2130.00
2011
5064847AE (up to 6/21/10)
5064847AF (after 6/21/10)
5064847AG

2012
5091187AB

Without integrated satellite radio MSRP: $2225.00
Grand Cherokee RHB part numbers (Kit)
2011
82212475 		With integrated satellite radio. Includes radio, antenna wiring harness, antenna base and antenna whip. MSRP: $2050.00
Note: Production revisions are designated with a higher letter in the part number suffix; the higher the letter, the newer the radio (AE, AF, AG etc.). When purchasing a new or used radio, a later production radio is more desirable.




Upgrading from AM/FM radio to the RHB navigation radio


Vehicle being upgraded from (AM/FM only) the following is required:

Vehicle being upgraded from (AM/FM and SATELLITE RADIO) the following is required:

  • RADIO REMOVAL
  • ANTENNA REPLACEMENT
  • RADIO INSTALLATION


RHB radio kit installation guide (PDF)





2. Media Center 730N (model RER, discontinued)

Note: The "RER" sales code and "730N" designation was also used for 2008-2010 model year navigation radios. These radios used a low-speed bus system. The 2011 model year RER/730N radios were made for the newer high-speed bus system. The radios are not compatible - you cannot install 2008-2010 RER radios into 2011-up vehicle, and you cannot install 2011 RER radios into prior model year vehicles. The RER/730N radio was replaced by the new RHR/730N radio in January 2011.

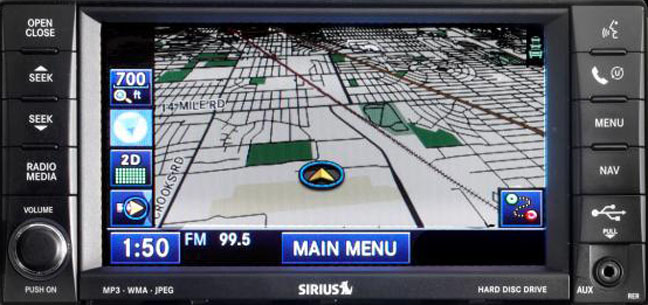

RER navigation radio


  • Premium navigation radio with built-in Uconnect Voice Command and Enhanced GPS
  • 6.5" TFT Display (400 x 240 pixels) with touchscreen LCD
  • Single CD/DVD/MP3
  • Audio input jack
  • 30 GB Hard Drive (16.3GB usable)
  • Album artwork
  • USB copy only
  • SIRIUS Satellite Radio®
  • Harmon GPS navigation
  • Uconnect voice command of phone, radio & music
  • iPod Control
  • Dead reckoning
  • Split-screen capability
  • Voice command of navigation
  • Includes iPod® Control cable, charges iPod compatible devices and allows remote control of music via radio or steering wheel controls



2011 Grand Cherokee RER part numbers (radio unit only)
  • High speed Bus
  • Discontinued for Grand Cherokee August 2010
  • Not compatible with 2010 or prior Grand Cherokee models (new Bus system)
5064725AD (up to 6/7/10)
5064725AE (after 6/7/10) 		With integrated satellite radio MSRP: $2570.00
Note: Production revisions are designated with a higher letter in the part number suffix; the higher the letter, the newer the radio (AE, AF, AG etc.). When purchasing a new or used radio, a later production radio is more desirable.




RER Specifications and features:

  • Hard drive (HDD) based navigation (data pre-loaded)
  • Flip-down motorized display
  • Full map & TBT display
  • Point-of-interest listing
  • Real time traffic updates via Sirius
  • Turn-by-turn route guidance
  • Voice activated destination input
  • 2D & 3D Bird's eye view of road

LCD Display:

  • 6.5" TFT display (400 x 240 pixels)
  • Touchscreen LCD
  • Flip down Motorized Display
  • Enhanced graphics

Data File Transfer/Storage:

  • 30 GB HDD for nav, photo, music (16.3 GB available for storage)
  • USB 2.0 port interface
  • JPEG photo viewer
  • Customizable screen background using your own photos
  • Music file transfer
  • CD/DVD to HDD

Integrated Music Juke Box:

  • Supports Gracenote Music file management system
  • Ability to Rip and store music to HDD via CD or USB
  • Supported formats: MP3, WMA, CD Audio, DVD Audio, and DVD Video, DVD-ROM, DVD Plus, DualDisc, SA-CD (CD Layer)

Integrated Radio Receivers:

  • 12 AM/12 FM station presets
  • 12 satellite radio presets (when equipped)
  • Bass, treble, balance, fade control and mid-range
  • Bi-directional radio seek
  • CD changer controls
  • Dual base band satellite radio receiver (Sirius)
  • Dual FM tuner
  • Electronically tuned
  • Optimized AM tuner
  • World tuner support

Audio / Video Entertainment System:

  • Supports three simultaneous audio output sources
  • Supports two simultaneous video output sources
  • Displays video output on radio headunit display
  • Capability to play and control DVD audio/video from headunit or external DVD player
  • Radio is capable of playing compact discs (CD), recordable compact discs (CD-R), rewritable compact discs (CD-RW), recordable DVD-R, DVD+R, DVD-RW, and DVD+RW compact discs
  • Note: High definition content and media (e.g., HD-DVD, Blu-Ray) is not supported

Single Compact Disc player:

  • Track seek and scan, forward and reverse
  • Display for elapsed time, track and disc disc selection
  • MP3/WMA capability - CDs containing MP3/WMA-encoded files can be played
  • Shock-resistant vibration-dampened mounting
  • Ignition-off disc ejection capability

Integrated Voice Dialogue System (SDS):

  • Command and control of audio, navigation and phone functions
  • Large vocabulary
  • Pop-up dialog display
  • Adaptive voice learning capability
  • Automatic phonetic transcription (G2P)
  • Seamless voice tree
  • Supports English, French, Spanish for U.S.

Other:

  • UConnect® communications system, integrated
  • Bluetooth connectivity







3. Media Center 730N (model RHR, replacement for model RER)


RHR navigation radio


  • Ordering opened on January 12, 2011
  • Production start January 17, 2011
  • Optional on Limited and Overland; Standard on Overland Summit; Standard on 2012 SRT8
  • AM/FM/CD/DVD/MP3/HDD/NAV
  • 30GB hard drive (11GB usable) for 2011 models; 40GB/20 usable for 2012 models)
  • 6.5" TFT Display (400 x 240 pixels) with touchscreen LCD
  • 2D & 3D bird's eye view of roads
  • AAC compressed format added to WMA and MP3
  • Adaptive voice learning
  • Album art added to song information
  • AUX input for any device with audio out capability
  • Bluetooth advanced audio distribution
  • Bluetooth streaming audio via A2DP (Report Control)
  • Bluetooth Device HMI control (AVRCP1.4)
  • Control devices via touch screen
  • Conference call features & mute key added
  • Dead reckoning
  • Displays video output on radio headunit display
  • Dual FM Tuner with RDS
  • Enhanced graphics/speed
  • Extended playlist manager (file editor)
  • Flash drive playback via USB ports
  • Gracenotes Music Management "Play" functions
  • Harmon based navigation
  • HDD backup files to USB flash drive (via engineering menu)
  • Multi-Route Calculation
  • ID3 TAG Editor for music list customization
  • iPhone 4 compatibility (4.0/4.1)
  • JPEG photo viewer
  • HMI for media (time, seek, pause, play)
  • Junction view added for highway exits
  • Media search using alphabetical menu
  • Menu - HMI for Media (time, seek, pause, play)
  • Mute & un-mute button added to voice control
  • "My Trips" customizable route plans
  • Optimized AM tuner
  • Point of Interest (POI) search improvements
  • Rear park assist camera view
  • Seamless voice tree
  • SIRIUS Satellite Radio®
  • SIRIUS Traffic
  • SIRIUS Travel Link
  • Split-screen capability
  • Support up to 8 simultaneous devices (vs. 3 on the RER)
  • Supports AAC, MP3, WMA from USB, CD, DVD, or HDD
  • Synchronize up to 2 iPods & 2 MTP devices
  • Two simultaneous video output sources
  • World Tuner Support

  • USB - 2.0 port interface
  • USB - 2nd location added, supports headunit hub
  • USB - Copy only
  • USB - Device charge capability (1 amp max)
  • USB - Digital interface for iPod/iPhone & MTP devices (Play for Sure)
  • USB - Increased transfer rates (USB 2.0)
  • USB - Supports 8 simultaneous audio output sources (vs. 3 on RER)

  • Voice Command - Automatic Phonetic Transcription (G2P)
  • Voice Command - Destination input
  • Voice Command - Extended VR for most popular POI's
  • Voice Command - Gracenote music files
  • Voice Command - Gracenote menu commands ("Play Beatles", "Play more like this")
  • Voice Command - Hang up/dial/receive calls/ignore calls
  • Voice Command - Improved POI search using fuzzy logic
  • Voice Command - Manual dialing pad via touch screen
  • Voice Command - Navigation
  • Voice Command - Phone, radio & music



The RHR navigation radio is available from the factory on the following vehicles:

2011-2012 Jeep Grand Cherokee
2011-2012 Dodge Avenger
2011-2012 Dodge Challenger
2011-2012 Dodge Durango
2011-2012 Jeep Liberty
2011-2012 Dodge minivans
2011 Dodge Nitro
2011-2012 Dodge Ram (all models)
2011-2012 Chrysler Sebring/Chrysler 200
2011-2012 Jeep Wrangler



Grand Cherokee RHR part numbers (radio only)
  • High speed Bus system
  • Not compatible with 2010 or prior Grand Cherokee models
2011
05064830AC (up to 1/7/11)
05064830AD (after 1/7/11)
05064830AE
05064830AF

2012
68089010AC
68089010AD
68089010AE

With integrated satellite radio MSRP: $1950.00
Grand Cherokee RHR part numbers (kit)
2011-2012
82212643 		With integrated satellite radio MSRP: $2150.00
Note: Production revisions are designated with a higher letter in the part number suffix; the higher the letter, the newer the radio (AC, AD, AE etc.). When purchasing a new or used radio, a later production radio is more desirable.



RHR part numbers - other vehicles (radio only)
Year/Part # Vehicles MSRP
2011
5064820AB
5064820AC
5064820AD
5064820AE
5064820AF

2012
68092000AB
68092000AC

(high speed bus)

Liberty
Minivans
Nitro
Ram
Wrangler

$2315
2011
5064821AD
5064821AE
5064821AF

2012
68092001AC

(low speed bus)

Avenger
Caliber
Compass
Challenger
Patriot
Sebring

$2315
Note: Production revisions are designated with a higher letter in the part number suffix; the higher the letter, the newer the radio (AC, AD, AE etc.). When purchasing a new or used radio, a later production radio is more desirable.




Upgrading to the RHR radio


If the vehicle is equipped with a lower line radio and Uconnect hands free module, the vehicles microphone and USB port will not be wired to the new RHR radio, but to the old HFM module. The RHR radio has an internal Uconnect module.

If installing a RHR radio and the vehicle had been equipped with a lower line radio and Uconnect hands free module, install the MOPAR Hand Free Module adaptor wiring harness for Uconnect Hands Free Module (HFM) equipped vehicles (p/n 82211666) and USB cable (p/n 68068278AA) for Remote USB Port equipped vehicles. This will allow the mirror mounted microphones and remote USB port to be hooked up to the new RHR radio.

The RHR radio uses a dual satellite radio/GPS antenna. All 2011 model year vehicles that came with a navigation radio will already have this antenna from the factory.


Parts:

1. 82211666 Microphone Harness (for vehicles equipped with mirror mounted microphone) ($108.00 MSRP)

2. 68068278AA USB Jumper Cable (male mini USB connectors on both ends) ($17.35 MSRP)

3. Dual satellite radio/GPS antenna ($?? MSRP)


Installation:

1. Install the Mopar HFM microphone adaptor wiring harness.

2. Install the Mopar USB cable from the rear of RHR radio to the remote USB port inline connector near the shifter assembly in the center console.

Note: It is necessary to unplug the original Uconnect Hands Free module. This will prevent a conflict with the new RHR radio Uconnect Module and old original Hands Free Module.

Note: The VIN must be updated (by a dealer) with the sales code of the added radio in order to enable system functionality.


RHR radio kit installation guide (PDF)




JustForJeeps.com
 WKJeeps.com website Premier Sponsor
Discount Jeep Parts and Accessories
shipped worldwide



Home       Main menu
