The following is a list of factory recommended service intervals and related information pertaining to 2011 Grand Cherokee WK models. Before performing any service, check your vehicle owners manual for verification of intervals, capacities and other recommendations, cautions and warnings.
WARNING: You can be badly injured working on or around a motor vehicle. Do only that service work for which you have the proper equipment. If you have any doubt about your ability to perform a service or maintenance job, take your vehicle to a competent mechanic.
Service Interval "A" is for vehicles that are not operated under any of the conditions listed under Schedule "B." Most vehicles are operated under the conditions listed for Schedule "B". Use the schedule that best describes your driving conditions. Where time and mileage are listed, follow the interval that occurs first. Service Interval "B" (Heavy) Follow this schedule if you usually operate your vehicle under one or more of the following conditions:
|
|
2011-2020 Grand Cherokee
| ||||
| 2011 | 2012 | 2013 | 2014 | 2015 |
| 2016 | 2017 | 2018 | 2019 | 2020 |
| All model years combined into one 56-page bookmarked PDF file: | ||||
| Description | Specification / Capacity | Type / Part # | Service Interval A |
Service Interval B |
|||||||||||||||||||||
|

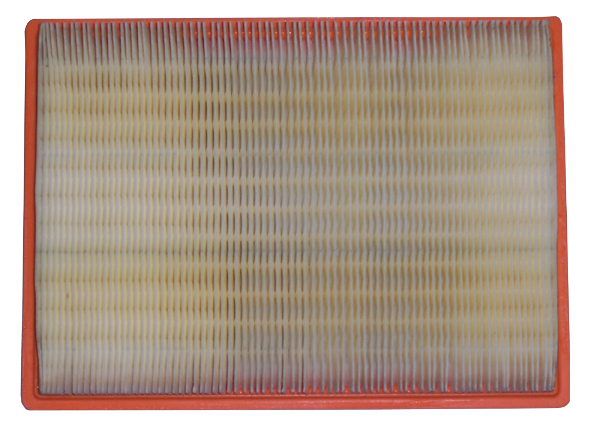

Air Cleaner Filter
| |||||||||||||||||||||||||
|
3.0 V6 CRD
3.6 V6 Pentastar 5.7 / 6.4L V8 Hemi |
Mopar® p/n 04861688AA (3.0 V6 )
Mopar® p/n 04861756AA (3.6 V8 ) Mopar® p/n 04861756AA (5.7 / 6.4L V8) |
32,000 mi. 24 mo. |
16,000 mi. 12 mo. |
||||||||||||||||||||||
|
Axles, front and rear
| |||||||||||||||||||||||||
|
Front axles
195mm FIA (all models)
Axle ratios:
3.45:1 - 3.0L The 195 MM FIA (Front-Independent-Aluminum) axle is an independent assembly with an aluminum housing and differential.

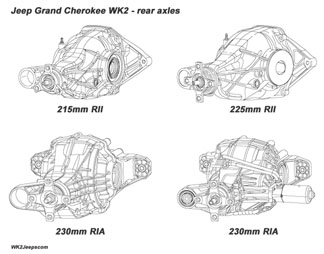

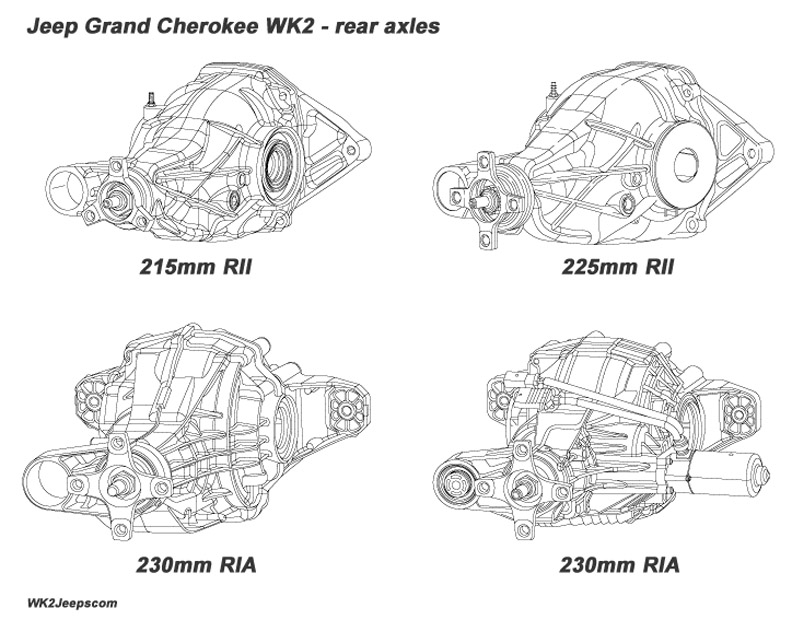

Rear axles
A. 215mm RII
3.06:1 axle ratio The 215 MM RII (Rear-Independent-Iron) axle is an independent assembly with a cast iron housing and differential. The 215 MM RII uses an open differential which is supported by two tapered roller bearings located on either side of the case.
3.47:1 axle ratio The 225 MM RII (Rear-Independent-Iron) axle is an independent assembly with a cast iron housing and differential. The 225 MM RII uses an open differential which is supported by two tapered roller bearings located on either side of the case.
3.47:1 axle ratio The 230 MM RIA (Rear-Independent-Aluminum) axle is an independent assembly with an aluminum housing and differential. The 230 MM axle can be equipped with or without ELSD (Electronic Limited Slip Differential).
3.45:1 axle ratio 5.7L The 230 MM RIA (Rear-Independent-Aluminum) axle is an independent assembly with an aluminum housing and differential. The 230 MM axle can be equipped with or without ELSD (Electronic Limited Slip Differential). |
1. All models, all front and rear axles - except 230mm with ELSD*
(*Electronic Limited Slip Differential)
Mopar® Gear and Axle Lubricant 75W-85
2. ELSD* rear axle (*Electronic Limited Slip Differential)
Mopar® Gear and Axle Lubricant 75W-85 with Modifier Note: A separate limited slip additive is NOT required. Caution: ONLY use Mopar ELSD differential lubricant in the ELSD differential.
Front and rear axle drain plug torque: 26 ft. lbs/35 N·m
|
36,000 mi. | 18,000 mi. | ||||||||||||||||||||||
|
WARNING: New or used engine oil can be irritating to the skin. Avoid prolonged or repeated skin contact with engine oil. Contaminants in used engine oil, caused by internal combustion, can be hazardous to your health. Thoroughly wash exposed skin with soap and water. Do not wash skin with gasoline, diesel fuel, thinner, or solvents, health problems can result. Do not pollute, dispose of used engine oil properly. Contact your dealer or government agency for location of collection center in your area.
The Grand Cherokee is equipped with an engine oil change indicator system. The "Oil Change Required" message will flash in the EVIC display for approximately 10 seconds after a single chime has sounded to indicate the next scheduled oil change interval. The engine oil change indicator system is duty cycle based, which means the engine oil change interval may fluctuate dependent upon your personal driving style.
Unless reset, this message will continue to display each time you turn the ignition switch to the ON/RUN position. To turn off the message temporarily, press and release the Menu button. To reset the oil change indicator system (after performing the scheduled maintenance) perform the following procedure:
1. Turn the ignition switch to the "ON" position (Do not start the engine)
2013-up model year vehicles will be equipped with a new variable automatic oil change indicator system. Operating conditions such as frequent short-trips, trailer tow, extremely hot or cold ambient temperatures, or E85 fuel usage will influence when the "Change Oil" message is displayed indicating service is required. Severe operating conditions can cause the change oil message to illuminate AS EARLY AS 3,500 MILES SINCE THE LAST RESET.
ALWAYS CHANGE THE ENGINE OIL AND FILTER WHEN PROMPTED BY THE OIL CHANGE INDICATOR SYSTEM AND UNDER NO CIRCUMSTANCES SHOULD OIL CHANGE INTERVALS EXCEED 10,000 MILES OR TWELVE MONTHS, WHICHEVER COMES FIRST (6,000 MILES/6 MO. FOR SRT VEHICLES).
| |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||

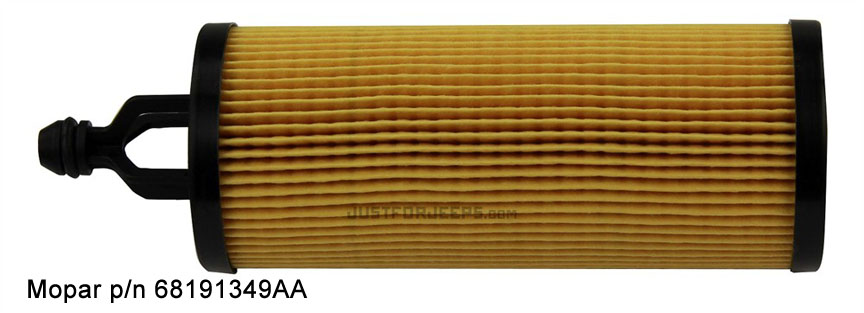

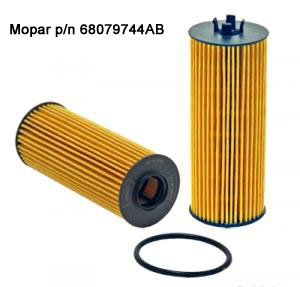

| 3.0 V6 CRD |
8.0 qts. (7.7 liters) (w/filter) (2014 models)
9.0 qts. (8.4 liters) (w/filter) Oil pan bolt torque: 33 ft. lbs./45 N·m |
5W-30 (3.0 V6 CRD) (2011-2013 models)
SAE 5W-30 Synthetic Low Ash Engine Oil meeting the requirements of Chrysler Material Standard MS- 11106 and approved ACEA C3 such as MOPAR®, Pennzoil®, Shell Helix® or equivalent.
Mopar p/n 68001334PB, MSRP $9.00/quart
SAE 5W-30 MOPAR or Shell Rotella that meets FCA Material Standard MS-10902 and the API CJ-4 or ACEA E9/E7 or ACEA A3/B4 engine oil category is required.
Mopar p/n 68001332PA, MSRP $9.50/quart
WARNING: Any time the oil is drained and filled it is critical to wait 15 minutes before starting the engine.
NOTE:The manufacturer strongly recommends against the addition of any additives (other than leak detection dyes) to the engine oil. Engine oil is an engineered product and its performance may be impaired by supplemental additives.
NOTE: It may take 30 minutes or longer for the engine oil in the oil filter housing to completely drain back into
the engine. The oil will only drain back into the engine through the oil pump gears. When servicing the
oil filter, vehicle maintenance personnel need to be made aware that the residual oil in the housing may
spill from the housing when the new filter is installed.
To prevent residual oil in the housing from spilling when the new filter is installed either use a suction gun
to remove any residual oil left in the housing or wait about 30 minutes allow the oil to drain back into the
engine.
NOTE: Based on engine operating conditions, the oil change indicator message will illuminate. This means that service is required for your vehicle. Operating conditions such as frequent short trips, trailer tow, extremely hot or cold ambient temperatures, and Biodiesel fuel usage will influence when the "Oil Change Required" message is displayed. Severe Operating Conditions can cause the change oil message to illuminate as early as 3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as possible, within the next 500 miles (805 km).
Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km) or 12 months, whichever comes first.
WHEN USING BIODIESEL BLENDS GREATER THAN 5% (B6 TO B20) - Under no circumstances should oil change intervals exceed 8,000 miles (12,875 km) or 6 months, whichever comes first.
3.0L Oil filter removal and installation (PDF)
|
10,000 mi.
12 mo. (maximum)
|
5,000 mi. 6 mo. |
|||||||||||||||||||||
|

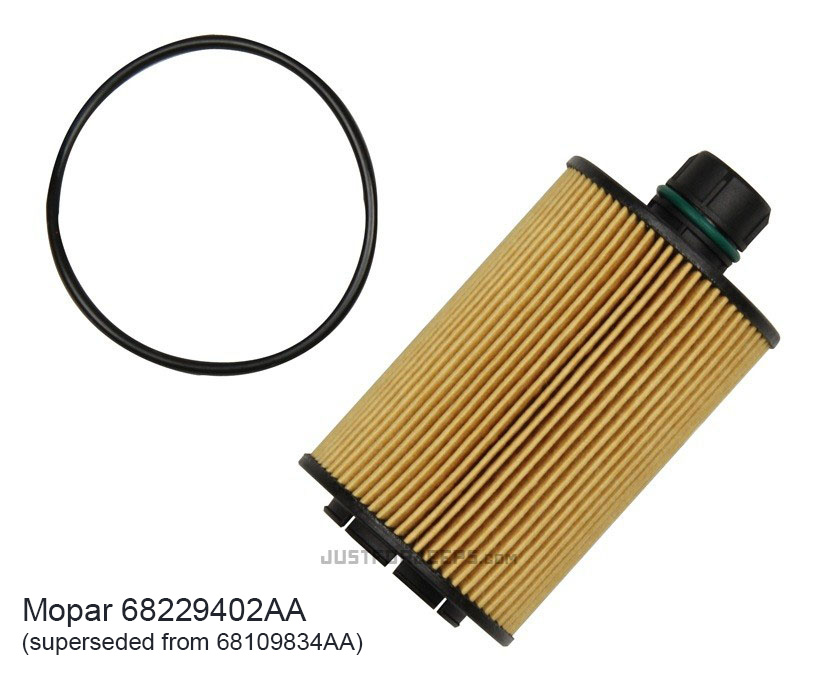

3.6 V6 Pentastar
|
6 qts. (w/filter)
Oil pan bolt torque: 20 ft. lbs./27 N·m |
5W-30 (3.6 V6, 2011-2012 models)
5W-20 (3.6 V6, 2013-2015 models)
MOPAR® API Certified SAE 5W-20 / 5w-30 engine oil, meeting the requirements of Chrysler Group LLC Material Standard MS-6395
Mopar p/n 04761838AB, MSRP $3.20/quart 0W-20 (3.6 V6, 2016-up models) API Certified SAE 0W-20 Engine Oil recommended, meeting the requirements of Material Standard MS-6395 such as MOPAR, Pennzoil, and Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km) or 12 months, whichever comes first. 3.6L Oil and Filter change directions (PDF)
| 2011-12 model years
8,000 mi.
10,000 mi. |
2011-12 model years
4,000 mi.
5,000 mi. | |||||||||||||||||||||

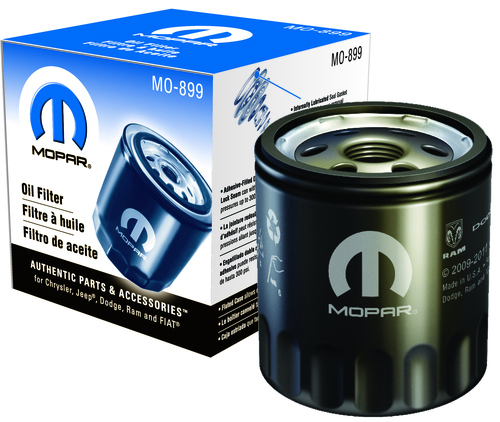

| 5.7 V8 MDS Hemi | 7 qts. (w/filter)
Oil pan bolt torque: 25 ft. lbs./34 N·m |
5W-20 (5.7 V8 Hemi)
MOPAR® API Certified SAE 5W-20 engine oil, meeting the requirements of Chrysler Group LLC Material Standard MS-6395
Mopar p/n 04761872AC, MSRP $5.95/quart CAUTION: Vehicles with 5.7L engines equipped with Multiple Displacement System (MDS) must use SAE 5W-20 oil. Failure to do so may result in improper operation of the Multiple Displacement System (MDS). NOTE: Based on engine operating conditions, the oil change indicator message will illuminate. This means that service is required for your vehicle. Operating conditions such as frequent short trips, trailer tow, extremely hot or cold ambient temperatures, and Biodiesel fuel usage will influence when the "Oil Change Required" message is displayed. Severe Operating Conditions can cause the change oil message to illuminate as early as 3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as possible, within the next 500 miles (805 km). Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km) or 12 months, whichever comes first. Hemi engine Oil and Filter change directions
| |||||||||||||||||||||||
|

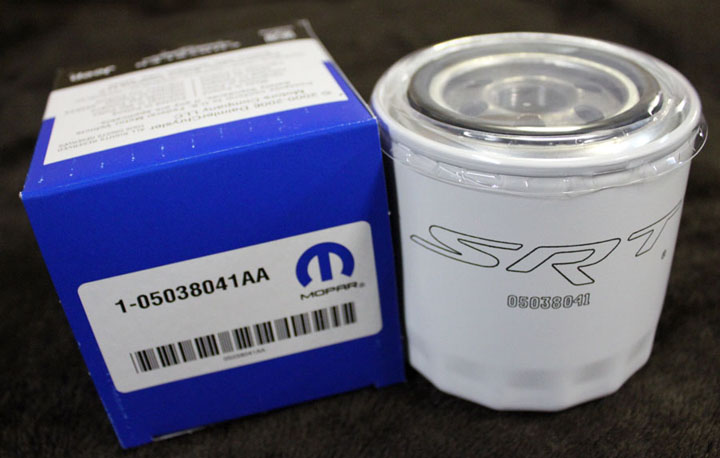

6.2 V8 Hemi Supercharged 6.4 V8 MDS Hemi (SRT8/Trackhawk) | 7 qts. (w/filter)
Oil pan bolt torque: 25 ft. lbs./34 N·m |
0W-40 (6.4 V8 Hemi)
MOPAR® API Certified SAE Full Synthetic engine oil
Pennzoil/Mopar p/n 68171066PA, MSRP $10.10/quart
For best performance and maximum protection under all types of operating conditions, the manufacturer only recommends full synthetic engine oils that meet the American Petroleum Institute (API) categories of SN. The manufacturer recommends the use of Pennzoil Ultra 0W-40 or equivalent MOPAR engine oil meeting the requirements of Material Standard MS-12633 for use in all operating temperatures. NOTE: The fast-acting cam phaser system (Variable Valve Timing) on the 6.4L engine was designed to utilize synthetic 0W-40 viscosity oils. Based on engine operation conditions the oil change indicator message will illuminate, this means that service is required for your vehicle. Have your vehicle serviced as soon as possible, within the next 500 miles (805 km). Under no circumstances should oil change intervals exceed 6,000 miles (10,000 km) or 6 months, whichever comes first. Hemi engine Oil and Filter change directions
|
6,000 mi. 6 mo. (maximum) | 3,000 mi. 6 mo. | |||||||||||||||||||||
|
Transfer cases (4WD/AWD Grand Cherokees only)
| |||||||||||||||||||||||||
MP2010 (single speed)
The ITC (Integrated Transfer Case, MP2010) is a single-speed transfer case and it is used in Grand Cherokee's new Quadra- Trac I Full-Time 4-Wheel Drive System. It provides convenient full-time 4-wheel drive.
The transfer case operates with an open center differential dividing engine torque 50 percent torque to the front axle and 50 of torque to the rear axle.
The Brake Traction Control System, which combines standard ABS and Traction Control, provides resistance to any wheel that is slipping to allow additional torque transfer to wheels with traction. Operation Full-time 4-wheel drive distributes torque to all wheels under all conditions. The transfer case center differential divides torque to the front and rear axles, while also allowing the driveshafts to rotate at different speeds to account for front and rear wheels traveling different distances while turning. Given that the drive shafts can rotate at different speeds, the vehicle can remain in full-time 4-wheel drive mode indefinitely - even on dry pavement - without threat of damage to the drivetrain. The vehicle uses Brake Traction Control to modulate the torque from one wheel to another across each axle and the transfer case. |
0.51L (1.1 pts.) | Automatic Transmission Fluid
ATF approved to MB 236.10, MB 236.12, such as Shell ATF 3403/M-115, Fuchs/Shell ATF 3353, or equivalent. Mopar® p/n 05127382AA (1 quart) Drain/Fill plug torque: 16-21 ft.-Lbs. |
Inspect at 30,000 mi. 36 mo. |
Inspect at 30,000 mi. 36 mo. |
|||||||||||||||||||||
MP3010 (single speed, SRT8) The MP3010 is a single speed transfer case which provides convenient full-time all-wheel-drive. No driver interaction is required. The DTCM module governs the torque split between the front and rear axle. Driving down a straight line on a dry surface the transfer case sends 47 percent of the torque to the front axle and 53 percent of torque to the rear axle. This four-wheel drive (4WD) system allows front and rear wheels to rotate at different speeds when required by the road condition or road surface. Operation
Normal All-Wheel Drive allows front and rear wheels to rotate at different speeds on all road surfaces. The "SVC 4WD" warning light monitors the electric shift 4WD system. If this light remains on after engine start up or illuminates during driving, it means that the 4WD system is not functioning properly and that service is required.
Proper operation of all-wheel drive vehicles depends on tires of equal size, type and circumference on each wheel. Any difference in tire size can cause damage to the transfer case.
The DTCM (Drive Train Control Module) is an electronic module that controls the shifting of the 4WD "Active on Demand" MP3010 single speed transfer case. |
1.35L (1.4 quarts) Fill to bottom edge of the fill plug hole |
Automatic Transmission Fluid
Mopar® ATF +4, type 9602.
Drain/Fill plug torque: 15-25 ft.-Lbs. |
Drain and refill 30,000 mi. 36 mo. |
Drain and refill 30,000 mi. 36 mo. |
|||||||||||||||||||||
MP3023 (two speed)
The Select-Trac® II is the MP3023 two-speed, on-demand, active four-wheel drive transfer case that provides optimum traction for a wide range of conditions, while maximizing driver convenience. When operating in 4WD Auto mode, this sophisticated system anticipates and prevents slip by redirecting torque as necessary.
For added traction capability when traversing steep grades, rough terrain or extremely poor traction surfaces, the transfer case includes a 4WD Low mode. This second speed gear multiplies engine torque 2.72 times and locks the clutch pack for maximum traction.
Electric shifting between 4WD AUTO and 4WD Low is effected with a console-mounted switch. A pushpin button is used to shift to Neutral mode. Operation Controls for the MP3023 transfer case active clutch (torque biasing device) are located in the Drive Train Control Module (DTCM) and communicated on the Controller Area Network (CAN) C bus. The DTCM monitors multiple vehicle sensors to anticipate conditions which may result in wheel slip or reduced performance and preemptively adjusts torque split to front and rear axles as needed. The DTCM also compares wheel speeds at the front and rear axles to detect wheel slippage. A complete vehicle dynamics model, or algorithm, calculates slip at each tire for given vehicle-operating conditions. When wheel slip is detected, pressure applied to the transfer case clutch pack can be increased or decreased to apply increased torque to the axle with higher traction. The transfer case operates in active full-time four-wheel drive (4WD AUTO) unless the driver chooses 4WD Low, or Neutral. The electronically controlled wet clutch pack uses an electric motor to actuate an internal gear train, clutch cam, and low range barrel cam. The clutch cam actuates the clutch levers that apply normal force to the multi-disc wet clutch pack. The clutch discs are alternately splined to the front and rear drive shafts. When normal force is applied to this clutch pack, torque is transferred to equalize speed differences between front and rear axles. Transfer of torque from one wheel to the other on an axle is accomplished by using Brake Traction Control. Under the right conditions the vehicle can be driven by just one wheel. Standard Electronic Stability Program (ESP) works with the four-wheel drive system to enhance traction and control through three new features: Hill Descent, Hill Start Assist and Trailer Sway Control. |
1.90L (2 quarts) Fill to bottom edge of the fill plug hole |
Automatic Transmission Fluid
Mopar® ATF +4, type 9602.
Drain/Fill plug torque: 15-25 ft.-Lbs. |
Inspect at 30,000 mi. 36 mo. |
Inspect at 30,000 mi. 36 mo. |
|||||||||||||||||||||
| |||||||||||||||||||||||||
| W5A580 - 5 speed (Note: available with 3.6 and 6.4 engines only) |
4-6 qts. (service) 9.5-10 qts. (overhaul) |
Automatic Transmission Fluid Mopar® ATF +4, type 9602 Filter: (internal, flat) p/n 52108325AA |
100,000 mi. | 60,000 mi. | |||||||||||||||||||||
| 545RFE - 5 speed (Note: available with 5.7 engine only) |
5.5 qts. (2WD service) 6.5 qts. (4WD service) 14 qts. (overhaul) |
Automatic Transmission Fluid Mopar® ATF +4, type 9602

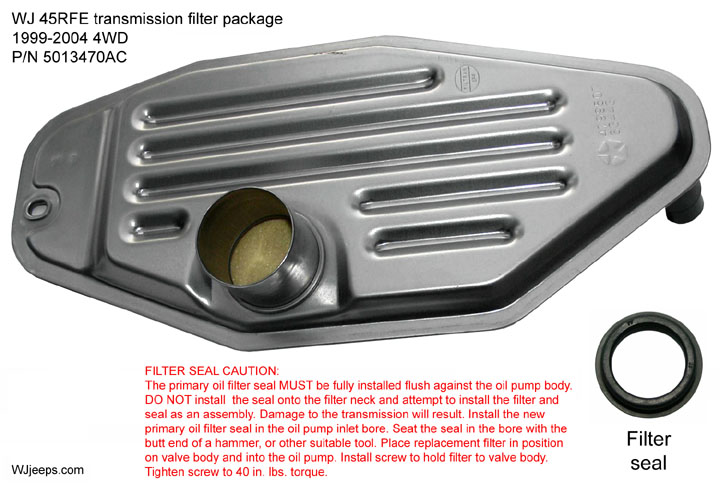

4WD - Primary filter: p/n 5013470AE
Filter # 2 (internal, round):
NOTE:

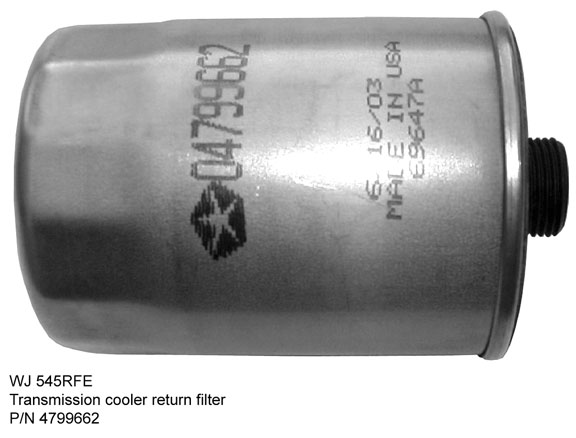

If the cooler return filter is marked with P/N 4799662AB, replace both filters. If the cooler return filter has no part number marking, or is marked 4799662AC (or later), replace only the sump filter. |
100,000 mi. | 60,000 mi. | |||||||||||||||||||||
| 8HP45 - 8 Speed
(2014-up model years) (Note: available with 3.6 engines only) |
8.98 qts. (8.5L) (dry fill) | Automatic Transmission Fluid Mopar® ZF 8&9 Speed ATF (p/n 68218925AA)
|
(fill for life) | ||||||||||||||||||||||
| 8HP50 - 8 Speed
(2017-up model years) (Note: available with 3.6 engines only) |
8.98 qts. (8.5L) (dry fill) | Automatic Transmission Fluid Mopar® ZF 8&9 Speed ATF (p/n 68218925AA)
|
(fill for life) | ||||||||||||||||||||||
| 8HP70 - 8 Speed
(2014-up model years) (Note: available with 3.0, 5.7 and 6.4 engines only) |
8.77 qts. (8.3L) (dry fill) | Automatic Transmission Fluid Mopar® ZF 8&9 Speed ATF (p/n 68218925AA)
|
(fill for life) | ||||||||||||||||||||||
| 8HP75 - 8 Speed
(2017-up model years) (Note: available with 3.0 engines only) |
8.98 qts. (8.5L) (dry fill) | Automatic Transmission Fluid Mopar® ZF 8&9 Speed ATF (p/n 68218925AA)
|
(fill for life) | ||||||||||||||||||||||
| 8HP95 - 8 Speed
(2018-2019 model years) (Note: available with 6.2L engines only) |
x.xx qts. (x.xL) (dry fill) | Automatic Transmission Fluid Mopar® ZF 8&9 Speed ATF (p/n 68218925AA)
|
(fill for life) | ||||||||||||||||||||||
Other
| |||||||||||||||||||||||||
| Brake caliper pins | Lubrication of brake caliper pins | 18,000 mi. 18 mo. |
12,000 mi. 12 mo. |
||||||||||||||||||||||
| Brake linings | Inspection of brake linings | 18,000 mi. 18 mo. |
12,000 mi. 12 mo. |
||||||||||||||||||||||
| Brake master cylinder | MOPAR® Brake Fluid DOT 3, SAE J1703
12 oz. Bottle - p/n 04318080AB 32 oz. Bottle - p/n 04318081AB (If DOT 3, SAE J1703 brake fluid is not available, then DOT 4 is acceptable. Use only recommended brake fluids.) |
||||||||||||||||||||||||
| Cabin Air Filter
|
Mopar® p/n 68079487AA
MSRP $37.50 |
24 mo. | 12 mo. | ||||||||||||||||||||||
| Cooling system
CAUTION:
Engine Coolant Checks
|
3.0 V6 - 14.0 qts.
3.6 V8 - 10.4 qts.
5.7 V8 - 15.4 qts.
6.2 V8 - 14.7 qts.
6.4 V8 - 16.0 qts. |
Mopar Antifreeze/Coolant 5-year/100,000 mile formula
The use of aluminum cylinder blocks, cylinder heads, and water pumps requires special corrosion protection. Mopar® Antifreeze/Coolant, 5 Year/100,000 Mile Formula (MS-9769), or the equivalent ethylene-glycol base coolant with organic corrosion inhibitors (called HOAT, for Hybrid Organic Additive Technology) is recommended. This coolant offers the best engine cooling without corrosion when mixed with 50% ethylene-glycol and 50% distilled water to obtain a freeze point of -37°C (-35°F). If it loses color (red/orange) or becomes contaminated, drain, flush, and replace with fresh properly mixed coolant solution. Notes and cautions: The recommended mixture is 50/50 ethylene-glycol and water. Never use pure antifreeze. Avoid non-HOAT mixtures, such as Prestone 50/50, that claim they can be used in vehicles of "all makes, all models". Antifreeze mixture must always be at least 44%, all climates year round. Maximum protection (-90d) is provided with a 68% mixture protection. Do not change the thermostat for summer or winter operation. If replacement is ever necessary, install ONLY the correct type thermostat. Other designs may result in unsatisfactory cooling performance, poor gas mileage, and increased emissions. CAUTION: Use of Propylene-Glycol based coolants is not recommended, as they provide less freeze protection and less corrosion protection. CAUTION: Mopar® Antifreeze/Coolant, 5 Year/100,000 Mile Formula (MS-9769) may not be mixed with any other type of antifreeze. Mixing of coolants other than specified (non-HOAT or other HOAT), may result in engine damage that may not be covered under the new vehicle warranty, and decreased corrosion protection. CAUTION: Do not use coolant additives that are claimed to improve engine cooling.
Chrysler Corporation LLC. has released a new engine coolant for 2013 model year vehicles and beyond.
Mopar Antifreeze/Coolant 10-year/150,000 mile formula
The use of aluminum cylinder blocks, cylinder heads, and water pumps requires special corrosion protection. Mopar® Antifreeze/Coolant, or the equivalent ethylene-glycol base coolant with organic corrosion inhibitors (called OAT, for Organic Additive Technology) is recommended. This coolant offers the best engine cooling without corrosion when mixed with 50% ethylene-glycol and 50% distilled water to obtain a freeze point of -37°C (-35°F). If it loses color or becomes contaminated, drain, flush, and replace with fresh properly mixed coolant solution. Notes and cautions: The recommended mixture is 50/50 ethylene-glycol and water. Never use pure antifreeze. Do not change the thermostat for summer or winter operation. If replacement is ever necessary, install ONLY the correct type thermostat. Other designs may result in unsatisfactory cooling performance, poor gas mileage, and increased emissions. OAT coolant is purple in color. It cannot be mixed with other types of coolant including Chrysler's existing HOAT coolant and only should only be mixed with approved OAT coolant of the same color. Maintenance of the cooling system is not required unless a repair has been made with loss of coolant or the coolant has been contaminated. CAUTION: Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is different and should not be mixed with Hybrid Organic Additive Technology (HOAT) engine coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into the cooling system in an emergency, it should be replaced with the specified engine coolant (antifreeze) as soon as possible. CAUTION: Do not use coolant additives that are claimed to improve engine cooling.
|
2011-2012 models 100,000 mi.
150,000 mi. |
2011-2012 models 60,000 mi.
75,000 mi. |
|||||||||||||||||||||
| Fuel | Tank size (all models): 24.6 gallons |
Diesel fuel:
3.0L V6 CRD Use good quality diesel fuel from a reputable supplier in your vehicle. The manufacturer requires that you must fuel this vehicle with Ultra Low Sulfur Highway Diesel fuel (15 ppm Sulfur maximum) and prohibits the use of Low Sulfur Highway Diesel fuel (500 ppm Sulfur maximum) to avoid damage to the emissions control system. For most year-round service, No. 2 diesel fuel meeting ASTM specification D-975 Grade S15 will provide good performance. If the vehicle is exposed to extreme cold (below 20F or -7C), or is required to operate at colder-than-normal conditions for prolonged periods, use climatized No. 2 diesel fuel or dilute the No. 2 diesel fuel with 50% No. 1 diesel fuel. This will provide better protection from fuel gelling or wax-plugging of the fuel filters. This vehicle is fully compatible with biodiesel blends up to 5% biodiesel meeting ASTM specification D-975.
3.6L, 5.7L, 6.2L and 6.4L NOTE: DO NOT use gasolines containing Methanol or E85 Ethanol. Use of these blends may result in starting and driveability problems and may damage critical fuel system components.
87 octane Regular unleaded 89 octane Mid-grade unleaded
91 octane (or higher) Premium (R+M)/2 recommended NOTE: The use of Premium gasoline is NOT recommended for the 3.6L or 5.7L engines. Under normal conditions, the use of Premium gasoline will not provide a benefit over high quality Regular and Mid-grade gasoline, and in some circumstances may result in poorer performance. |
As required (more often for 6.2L and 6.4L) | As required (more often for 6.2L and 6.4L) |
|||||||||||||||||||||
| Fuel filter | Gas engines only | Two fuel filters are used. One is located at the bottom of the fuel pump module, the other is located inside the module. A separate frame mounted fuel filter is not used with any gasoline engine. They do not require normal scheduled maintenance. Filters should only be replaced if a diagnostic procedure indicates to do so. | Normal scheduled maintenance not required | Normal scheduled maintenance not required | |||||||||||||||||||||
| Fuel filter/water separator unit |
3.0L CRD engines only | Inspect and replace if necessary
Fuel filter Mopar p/n 4726067AA. MSRP $46.95 ea. 3.0L fuel filter removal instructions, export (pdf) 3.0L fuel filter removal instructions, North America 2014 (pdf) |
50,000 mi.
NOTE: WHEN USING BIODIESEL FUELS, THE FUEL FILTER AND WATER MUST BE DRAINED EVERY 20,000 MILES OR TWO YEARS, WHICHEVER COMES FIRST. |
25,000 mi. | |||||||||||||||||||||
| Lube, chassis | There are no grease fittings on 2011-up Grand Cherokee models. Chassis lube is not required. | (not required) | (not required) | ||||||||||||||||||||||
| Parking brake |
Parking brake adjustment (vehicles equipped with four-wheel disc brakes) | 30,000 mi. 30 mo. |
30,000 mi. 30 mo. |
||||||||||||||||||||||
| PCV valve | 5184763AD or 68083202AB (3.6 V8)
53032940AB (5.7 V8) 5038532AA (6.4L) |
60,000 mi. 48 mo. |
30,000 mi. 30 mo. |
||||||||||||||||||||||
| Power steering fluid | Checking the fluid level:
When the fluid is at normal ambient temperature, approximately 70° - 80° F (21° - 27° C), the fluid level should read between the MAX and MIN markings. When the fluid is hot, fluid level is allowed to read up to the MAX line. CAUTION: Do not fill fluid beyond the MAX mark. Check cap seal for damage and replace if needed. |
Belt pump (mechanical) Mopar® MOPAR® Power Steering Fluid +4
(Note: If MOPAR® Power Steering Fluid +4 is not available, then MOPAR® ATF +4 Automatic Transmission Fluid (05013457AA) is acceptable)
3.6L (early build 2011 models*)
Mopar® MOPAR® Hydraulic Power Steering Fluid meeting MS-11655
3.6L (2011.5 - 2015 model years*)
*CAUTION: There is an Electric Power Steering (EPS) pump available on later build 2011 3.6L vehicles which require a different fluid (early build 2011 3.6L vehicles have a mechanical pump). Do not mix power steering fluid types. Damage may result to the power steering pump and system if any other fluid is used. The mechanical power steering pump systems on this vehicle require the use of Power Steering Fluid +4, which meets material specification MS-9602 or equivalent. The EPS pump system uses fluid which meets material specification MS-11655 or equivalent. Do not overfill. Electric power steering 2016-up model years, all engines - Electric power steering, uses no fluids
|
Check 7,500 mi. |
Check 7,500 mi. |
|||||||||||||||||||||
| Refridgerant, A/C | 24 oz., 1.5 lbs. | R-134A The A/C refrigerant system is filled-for-life at the factory and requires no regular maintenance. Although not required at specific intervals, the charge level should be checked if system performance deteriorates or if a noise or leak is suspected. |
Normal scheduled maintenance not required | Normal scheduled maintenance not required | |||||||||||||||||||||
| Serpentine drive belt | Inspect, replace if necessary. Under severe and off-road conditions inspect the belt annually |
p/n 5184646AC (3.6 V6, mechanical power steering, early build 2011 models)
p/n 5184647AB (3.6 V6, electro hydraulic power steering) p/n 04627031AA (5.7 V8) p/n 05037542AAA (6.4 V8) (If not replaced at first interval, inspect again each additional 12,000 mi./12 mo.) |
60,000 mi. 60 mo. |
60,000 mi. 60 mo. |
|||||||||||||||||||||
| Spark plugs |
3.6 V6 Pentastar (2011-up) Mopar p/n SP149125AD (Champion RER8ZWYCB4) (.043 gap, 6 plugs, tighten to 13 ft. lbs. (+/-2) (17.5 N·m) WARNING: 12mm SPARK PLUGS MUST NOT BE OVER-TORQUED. The 3.6L Pentastar engine is the first Chrysler engine to use 12mm spark plugs. With the introduction of this smaller spark plug is a concern that can occur usually not seen with larger 14mm plugs. When the smaller 12mm spark plugs are over-torqued, the metal shell stretches, resulting in improper heat transfer from the ceramic through the shell. This in turn can cause engine damage, due to pre-ignition. With a torque wrench, tighten the 12mm spark plugs to 13 ft. lbs. (17.5 N·m).
5.7 V8 Hemi (2014-up)
6.2 V8 Hemi (2018-up)
6.4 V8 Hemi (2012-up) |
96,000 mi. (3.6L/6.4L) 30,000 mi. (5.7L) 100,000 mi. (5.7L/6.2) |
96,000 mi. (3.6L/6.4L) 30,000 mi. (5.7L) 100,000 mi. (5.7L/6.2L) |
||||||||||||||||||||||
| Throttle body cleaning | THE THROTTLE BODY ***CANNOT BE CLEANED,*** DO NOT USE SPRAY CLEANERS OR APPLY SILICONE LUBRICANTS TO ANY PART OF THE THROTTLE BODY. These types of products can damage the throttle body components. The throttle body has no serviceable components and is replaced as an assembly. | (not required) | (not required) | ||||||||||||||||||||||
| Tire rotation | 6,000 mi. | 6,000 mi. | |||||||||||||||||||||||
