Dealer Scan Tool required for activation. Remote Start (XBM) can ONLY be installed on vehicles that have the following factory options: Automatic Transmission and Remote Keyless Entry.

Remote start system

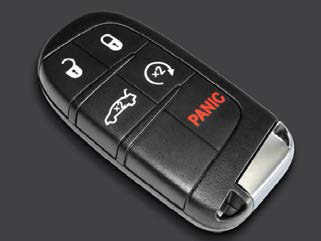

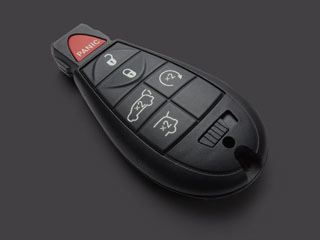

The Remote Starting System allows the vehicle to be started up to 300 feet (91 meters) away from the vehicle using the remote keyless entry key fob which is part of your ignition key. In order to remote start your vehicle, the hood, liftgate, and all of the doors must be closed. To remotely start your vehicle, press the "Remote Start" button twice within 5 seconds. To indicate that the vehicle is about to start, the parking lights will flash and the horn will sound briefly. Once the vehicle has started, the engine will run for 15 minutes. To cancel remote start, press the "Remote Start" button once. To enter the vehicle while the engine is running during a remote start, you must first unlock the vehicle using the "Unlock" button on the key fob. After the vehicle is unlocked, you have 60 seconds to enter the vehicle, insert the key into the ignition, and move it to the RUN position. Otherwise, the engine will cancel remote start and automatically turn off.

Remote start will also cancel if any of the following occur:

- If the engine stalls or RPM exceeds 2500.
- Any engine warning lamps come on.
- The hood is opened.
- The hazard switch is pressed.
- The transmission is moved out of P (Park).
- The brake pedal is pressed.
- The vehicle can be started remotely up to a maximum of two times. The vehicle is also allowed a maximum of one failed start. This can occur when the remote start sequence was initiated but cancelled before the engine begins to crank or the engine stopped cranking without starting. After either of these conditions, or if the Vehicle Theft

Operating conditions

In order to operate remote start, the following conditions must be met:

- Key fob sequence must be operated within a 100 meter range of the vehicle.
- The vehicle must be in Park.
- Key is not in the ignition.
- The hazard switch off.
- Vehicle Theft Alarm or Panic is not alarming.
- Doors and hood must be closed.
- The battery voltage is normal (11 to 15 volts).

(Prices listed are for reference purposes only and may vary by dealer. MSRP prices are current as of November 2013. Parts are not available from this web site.)
